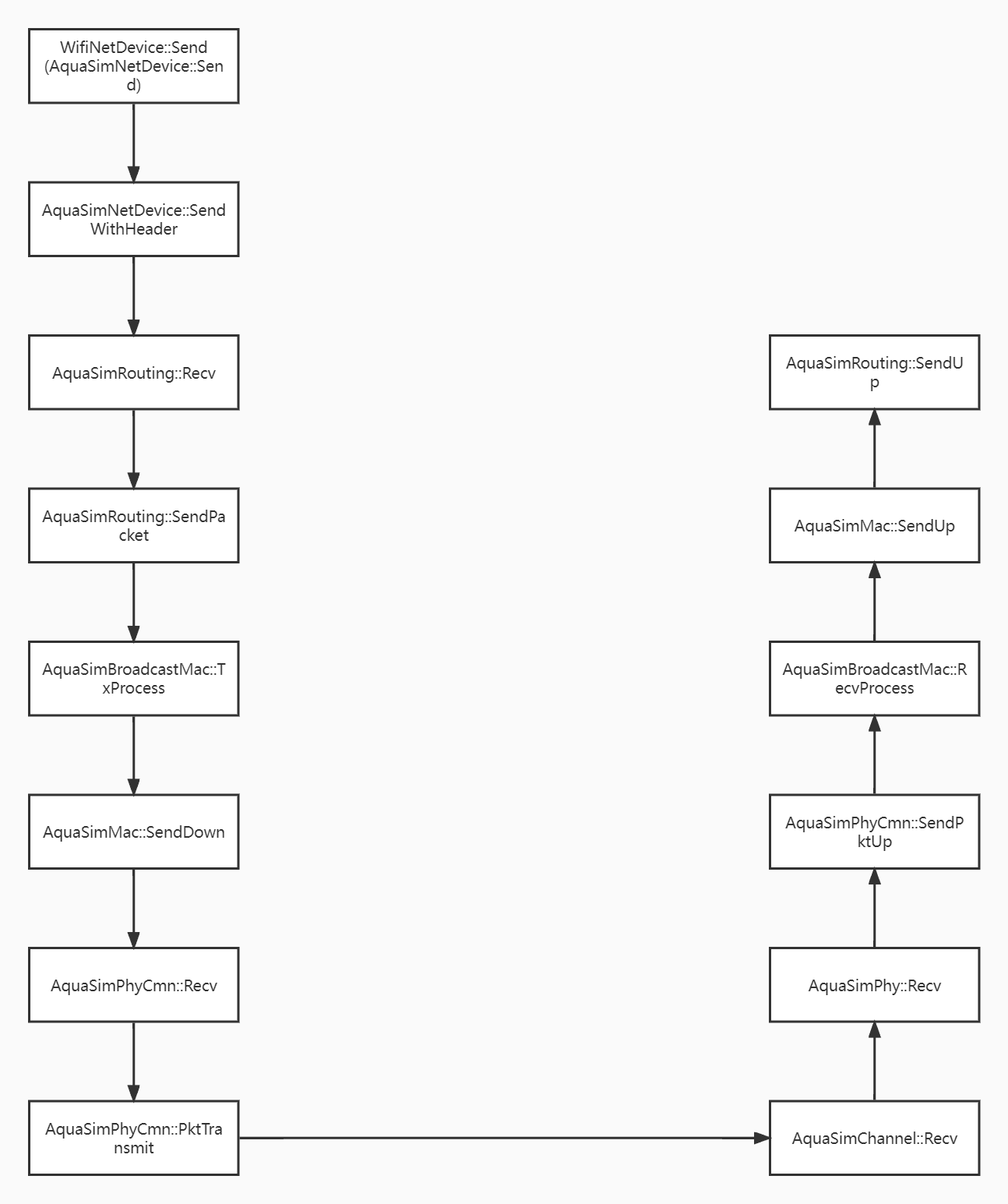

13.ns3 Aqua-sim ng 水声通信模块源码解析

class AquaSimNetDevice : public NetDevice

{

public:

  AquaSimNetDevice ();

  ~AquaSimNetDevice ();

  static TypeId GetTypeId (void);

  //attach

  void ConnectLayers(void);

  void SetPhy (Ptr<AquaSimPhy> phy);

  void SetMac (Ptr<AquaSimMac> mac, Ptr<AquaSimSync> sync = NULL, Ptr<AquaSimLocalization> loc = NULL);

  void SetRouting (Ptr<AquaSimRouting> routing);

  void SetChannel (Ptr<AquaSimChannel> channel);

  void SetChannel (std::vector<Ptr<AquaSimChannel> > channel); //for multi-channel support

  //void SetApp (Ptr<AquaSimApp> app);

  void SetEnergyModel (Ptr<AquaSimEnergyModel> energyModel);

  Ptr<AquaSimEnergyModel> GetEnergyModel();

  void SetAttackModel(Ptr<AquaSimAttackModel> attackModel);

  void SetNamedData(Ptr<NamedData> ndn);

  Ptr<AquaSimPhy> GetPhy (void);

  Ptr<AquaSimMac> GetMac (void);

  Ptr<AquaSimRouting> GetRouting (void);

  //Ptr<AquaSimApp> GetApp (void);

        //Not currently implemented

  Ptr<AquaSimChannel> DoGetChannel (int channelId) const;

  Ptr<AquaSimChannel> DoGetChannel(void) const;

  Ptr<AquaSimSync> GetMacSync(void);

  Ptr<AquaSimLocalization> GetMacLoc(void);

  Ptr<AquaSimAttackModel> GetAttackModel(void);

  Ptr<NamedData> GetNamedData(void);

  virtual void DoDispose (void);

  virtual void DoInitialize (void);

  virtual double GetPropSpeed(void); //m/s

  void ForwardUp (Ptr<Packet> packet, Ptr<MobilityModel> src, Ptr<MobilityModel> dst);    //not used.

  //inherited functions from NetDevice class

  virtual void AddLinkChangeCallback (Callback<void> callback);

  virtual Address GetAddress (void) const;

  virtual Address GetBroadcast (void) const;

  virtual Ptr<Channel> GetChannel (void) const;

  virtual uint32_t GetIfIndex (void) const;

  virtual uint16_t GetMtu (void) const;

  virtual Address GetMulticast (Ipv4Address multicastGroup) const;

  virtual Address GetMulticast (Ipv6Address addr) const;

  virtual Ptr<Node> GetNode (void) const;

  virtual bool IsBridge (void) const;

  virtual bool IsBroadcast (void) const;

  virtual bool IsLinkUp (void) const;

  virtual bool IsMulticast (void) const;

  virtual bool IsPointToPoint (void) const;

  virtual bool NeedsArp (void) const;

  virtual bool SendWithHeader (Ptr<Packet> packet, uint16_t protocolNumber);

  virtual bool Send (Ptr<Packet> packet, const Address &dest, uint16_t protocolNumber);

  virtual bool SendFrom (Ptr<Packet> packet, const Address &source,

                           const Address &dest, uint16_t protocolNumber);

  virtual void SetAddress (Address address);

  virtual void SetIfIndex (uint32_t index);

  virtual bool SetMtu (const uint16_t mtu);

  virtual void SetNode (Ptr<Node> node);

  virtual void SetPromiscReceiveCallback (PromiscReceiveCallback cb);

  virtual void SetReceiveCallback (ReceiveCallback cb);

  virtual bool SupportsSendFrom (void) const;

  /*

   * Taken from AquaSimNode during consolidation

   */

  //bool Move(void);    /*start the movement... should be handled within example*/

  //void Start(void);

  //void CheckPosition(void);

  inline Time &PositionUpdateTime(void) { return m_positionUpdateTime; }

  void SetPositionUpdateTime(Time posUpdateTime) { m_positionUpdateTime = posUpdateTime; }

  //sink related attributes

  int ClearSinkStatus(void);

  int SetSinkStatus(void);

  inline int GetSinkStatus(void) { return m_sinkStatus; }

  //VBF

  inline double &CX(void) { return m_cX; }

  inline double &CY(void) { return m_cY; }

  inline double &CZ(void) { return m_cZ; }

  inline bool FailureStatus(void) { return m_failureStatus; }

  inline double FailurePro(void) { return m_failurePro; }

  inline double FailureStatusPro(void) { return m_failureStatusPro; }

  virtual void SetTransmissionStatus(TransStatus status);

  virtual TransStatus GetTransmissionStatus(void);

  inline bool CarrierSense(void) { return m_carrierSense; }

  inline void ResetCarrierSense(void) { m_carrierSense = false; }

  inline void SetCarrierSense(bool f){

    m_carrierSense = f;

    m_carrierId = f;

  }

  inline bool CarrierId(void) { return m_carrierId; }

  inline void ResetCarrierId(void) { m_carrierId = false; }

  int m_nextHop;

  int m_setHopStatus;

  int m_sinkStatus;

  int GetHopStatus();

  int GetNextHop();

  //void UpdatePosition(void);  // UpdatePosition() out of date... should be using ns3's mobility module

  bool IsMoving(void);

  Vector GetPosition(void);

  Ptr<AquaSimEnergyModel> EnergyModel(void) {return m_energyModel; }

  bool IsAttacker(void);

  int TotalSentPkts() {return m_totalSentPkts;}

  inline bool MacEnabled() {return m_macEnabled;}

  inline void MacEnabled(bool value) {m_macEnabled = value;}

protected:

  void GenerateFailure(void);

private:

  void CompleteConfig (void);

  Ptr<AquaSimPhy> m_phy;

  Ptr<AquaSimMac> m_mac;

  Ptr<AquaSimRouting> m_routing;

  //Ptr<AquaSimApp> m_app;

  std::vector<Ptr<AquaSimChannel> > m_channel;

  Ptr<Node> m_node;

  Ptr<UniformRandomVariable> m_uniformRand;

  Ptr<AquaSimEnergyModel> m_energyModel;

  Ptr<AquaSimSync> m_macSync;

  Ptr<AquaSimLocalization> m_macLoc;

  Ptr<AquaSimAttackModel> m_attackModel;

  Ptr<NamedData> m_ndn;

  NetDevice::ReceiveCallback m_forwardUp;

  bool m_configComplete;

  bool m_attacker;

  /*

   * From AquaSimNode

   */

  TransStatus m_transStatus;

  double m_statusChangeTime;  //the time when changing m_preTransStatus to m_transStatus

  bool    m_failureStatus;// 1 if node fails, 0 otherwise

  double m_failurePro;

  double m_failureStatusPro;

  //the following attributes are added by Peng Xie for RMAC and VBF

  double m_cX;

  double m_cY;

  double m_cZ;

  bool m_carrierSense;

  bool m_carrierId;

  Time m_positionUpdateTime;

  uint32_t m_ifIndex;

  uint16_t m_mtu;

  int m_totalSentPkts;

  bool m_macEnabled;

  //XXX remove counters

};  // class AquaSimNetDevice

bool

AquaSimNetDevice::Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

{

  NS_LOG_FUNCTION(this << packet << dest << protocolNumber);

  m_totalSentPkts++;  //debugging

  AquaSimHeader ash;

  uint32_t pktSize = packet->GetSize();

  ash.SetSize(pktSize);

  ash.SetSAddr(AquaSimAddress::ConvertFrom(GetAddress()));

  ash.SetDAddr(AquaSimAddress::ConvertFrom(dest));

  packet->AddHeader(ash);

  return SendWithHeader(packet, protocolNumber);

}

bool

AquaSimNetDevice::SendWithHeader(Ptr<Packet> packet, uint16_t protocolNumber){

    AquaSimHeader ash;

    packet->RemoveHeader(ash);

    Address dest = ash.GetDAddr();

    uint32_t pktSize = ash.GetSize();

    //Quick hack. Named Data should be NULL pointer if unused/unset.

    if (m_ndn)

    {

      return m_ndn->Recv(packet);

    }

    if(m_routing)

      {//Note : https://www.nsnam.org/docs/release/3.24/doxygen/uan-mac-cw_8cc_source.html#l00123

        ash.SetNextHop(AquaSimAddress::GetBroadcast());

        packet->AddHeader(ash);

        NS_LOG_DEBUG("Me(" << AquaSimAddress::ConvertFrom(GetAddress()).GetAsInt()  << "): Sending packet to Routing layer : " << ash.GetSize() << " bytes ; " << ash.GetTxTime().GetSeconds() << " sec. ; Dest: " << ash.GetDAddr().GetAsInt() << " ; Src: " << ash.GetSAddr().GetAsInt() << " ; Next H.: " << ash.GetNextHop().GetAsInt());

        return m_routing->Recv(packet, dest, protocolNumber);

      }

    else if (MacEnabled() && m_mac)

      {

        ash.SetNextHop(ash.GetDAddr());

        packet->AddHeader(ash);

        NS_LOG_DEBUG("Me(" << AquaSimAddress::ConvertFrom(GetAddress()).GetAsInt()  << "): Sending packet to MAC layer : " << ash.GetSize() << " bytes ; " << ash.GetTxTime().GetSeconds() << " sec. ; Dest: " << ash.GetDAddr().GetAsInt() << " ; Src: " << ash.GetSAddr().GetAsInt() << " ; Next H.: " << ash.GetNextHop().GetAsInt());

        return m_mac->TxProcess(packet);

      }

    else if (m_phy)

      {

        SetTransmissionStatus(SEND);

        ash.SetNextHop(ash.GetDAddr());

        if(ash.m_channelSelect==1){

          ash.SetTxTime(m_phy->CalcAcousticsTxTime(pktSize));

        }else{

           ash.SetTxTime(m_phy->CalcOpticalTxTime(pktSize));

        }

        NS_LOG_DEBUG("Me(" << AquaSimAddress::ConvertFrom(GetAddress()).GetAsInt()  << "): Sending packet to Phy layer : " << ash.GetSize() << " bytes ; " << ash.GetTxTime().GetSeconds() << " sec. ; Dest: " << ash.GetDAddr().GetAsInt() << " ; Src: " << ash.GetSAddr().GetAsInt() << " ; Next H.: " << ash.GetNextHop().GetAsInt());

        Simulator::Schedule(ash.GetTxTime(), &AquaSimNetDevice::SetTransmissionStatus,this, NIDLE);

        packet->AddHeader(ash);

        //slightly awkard but for phy header Buffer

        AquaSimPacketStamp pstamp;

        packet->AddHeader(pstamp);

        return m_phy->PktTransmit(packet, 0);

      }

    else NS_LOG_WARN("Routing/Mac/Phy layers are not attached to this device. Can not send.");

    return false;

}

/*avoid instantiation since UnderwaterRouting's behavior is not defined*/

  virtual bool Recv(Ptr<Packet> packet, const Address &dest, uint16_t protocolNumber)=0;    //handler not implemented

/**

  * send packet p to the lower layer

  *

  * @param p            a packet

  * @param next_hop    the next hop to route packet p

  * @param delay        packet p will be sent in time of delay

  * */

bool

AquaSimRouting::SendDown(Ptr<Packet> p, AquaSimAddress nextHop, Time delay)

{

  //cmh->uw_flag() = true;

  //cmh->addr_type() = NS_AF_INET;

  NS_LOG_FUNCTION(this << p << nextHop << delay);

  NS_ASSERT(p != NULL);

  //add header to packet

  AquaSimHeader header;

  p->RemoveHeader(header);

  //NS_LOG_DEBUG("Pktsize=" << header.GetSize());

  if(header.GetUId() == -1) header.SetUId(p->GetUid());

  header.SetDirection(AquaSimHeader::DOWN);

  header.SetNextHop(nextHop);

  header.SetSAddr(AquaSimAddress::ConvertFrom(m_device->GetAddress()));

  p->AddHeader(header);

  //send down after given delay

  if (0)

  {

    header.Print(std::cout);

  }

  /*Note this schedule will not work, should instead call internal function once

   * event is executed which will internal call Mac's function directly.

   * This should most likely be a callback.

  */

  //Simulator::Schedule(delay, &AquaSimMac::Recv, &p);

  Simulator::Schedule(delay, &AquaSimRouting::SendPacket, this, p);

  return true;

}

void

AquaSimRouting::SendPacket(Ptr<Packet> p)

{

  NS_LOG_FUNCTION(this << m_mac);

  m_routingTxCbTrace(p);

  if (!m_mac->TxProcess(p))

    NS_LOG_DEBUG(this << "Mac recv error");

}

// to process the outgoing packet

  virtual bool TxProcess(Ptr<Packet> p)=0;

bool

AquaSimBroadcastMac::TxProcess(Ptr<Packet> pkt)

{

  NS_LOG_FUNCTION(this << pkt);

  AquaSimHeader ash;

  MacHeader mach;

  pkt->RemoveHeader(ash);

  mach.SetDA(AquaSimAddress::GetBroadcast());

  mach.SetSA(AquaSimAddress::ConvertFrom(m_device->GetAddress()));

  if( m_packetSize != 0 )

    ash.SetSize(m_packetSize);

  else

    ash.SetSize(m_packetHeaderSize + ash.GetSize());

  ash.SetTxTime(GetTxTime(pkt));

  switch( m_device->GetTransmissionStatus() )

  {

  case SLEEP:

      PowerOn();

      break;

  case NIDLE:

      ash.SetDirection(AquaSimHeader::DOWN);

      //ash->addr_type()=NS_AF_ILINK;

      //add the sync hdr

      pkt->AddHeader(mach);

      pkt->AddHeader(ash);

      //Phy()->SetPhyStatus(PHY_SEND);

      SendDown(pkt);

      m_backoffCounter=0;

      return true;

  case RECV:

    {

      double backoff=m_rand->GetValue()*BC_BACKOFF;

      NS_LOG_DEBUG("BACKOFF time:" << backoff << " on node:" << m_device->GetAddress() << "\n");

      //pkt->AddHeader(mach);

      pkt->AddHeader(ash);

      Simulator::Schedule(Seconds(backoff),&AquaSimBroadcastMac::BackoffHandler,this,pkt);

    }

      return true;

  case SEND:

    {

      double backoff=m_rand->GetValue()*BC_BACKOFF;

      NS_LOG_DEBUG("BACKOFF time:" << backoff << " on node:" << m_device->GetAddress() << "\n");

      //pkt->AddHeader(mach);

      pkt->AddHeader(ash);

      Simulator::Schedule(Seconds(backoff),&AquaSimBroadcastMac::BackoffHandler,this,pkt);

    }

    return true;

      /*pkt=0;*/

  default:

      /*

      * all cases have been processed above, so simply return

      */

    break;

  }

  return true;  //may be bug due to Sleep/default cases

}

bool

AquaSimMac::SendDown(Ptr<Packet> p, TransStatus afterTrans)

{

  NS_ASSERT(m_device);// && m_phy && m_rout);

  /*  For debugging:

  std::cout << "\nMac @SendDown check:\n";

  p->Print(std::cout);

  std::cout << "\n";

  */

  m_macTxTrace(p);

  if (m_device->GetTransmissionStatus() == SLEEP) {

    NS_LOG_DEBUG("SendDown::Sleeping, drop pkt");

      return false;

   }

  if (m_device->GetTransmissionStatus() == RECV) {

      NS_LOG_DEBUG("SendDown::Recv, queuing pkt");

      SendQueuePush(std::make_pair(p, afterTrans));

      return true;

  }

  else {

      m_device->SetTransmissionStatus(SEND);

      AquaSimHeader ash;

      p->RemoveHeader(ash);

      if (ash.GetTxTime().IsNegative()) ash.SetTxTime(GetTxTime(p));

      NS_LOG_DEBUG("Me(" << this->m_address.GetAsInt() << "): Sending packet to Phy : " << ash.GetSize() << " bytes ; " << ash.GetTxTime().GetSeconds() << " sec. ; Dest: " << ash.GetDAddr().GetAsInt() << " ; Src: " << ash.GetSAddr().GetAsInt() << " ; Next H.: " << ash.GetNextHop().GetAsInt());

      Simulator::Schedule(ash.GetTxTime(), &AquaSimNetDevice::SetTransmissionStatus,m_device,afterTrans);

      p->AddHeader(ash);

      //slightly awkard but for phy header Buffer

      AquaSimPacketStamp pstamp;

      p->AddHeader(pstamp);

      return Phy()->Recv(p);

  }

}

virtual bool Recv(Ptr<Packet> p) = 0;

/**

* we will cache the incoming packet in phy layer

* and send it to MAC layer after receiving the entire one

*/

bool

AquaSimPhyCmn::Recv(Ptr<Packet> p)

{

  NS_LOG_FUNCTION(this << p << "at time" << Simulator::Now().GetSeconds() << " on node " << GetNetDevice()->GetAddress());

  /*std::cout << "\nPhyCmn: @Recv check:\n";

  p->Print(std::cout);

  std::cout << "\n";*/

  AquaSimPacketStamp pstamp;

  AquaSimHeader asHeader;

  p->RemoveHeader(pstamp);

  p->PeekHeader(asHeader);

  p->AddHeader(pstamp);

  //NS_LOG_DEBUG ("direction=" << asHeader.GetDirection());

  if (asHeader.GetDirection() == AquaSimHeader::DOWN) {

    NS_LOG_DEBUG("Phy_Recv DOWN. Pkt counter(" << outPktCounter++ << ") on node(" <<

         GetNetDevice()->GetAddress() << ")");

    PktTransmit(p);

  }

  else {

    if (asHeader.GetDirection() != AquaSimHeader::UP) {

      NS_LOG_WARN("Direction for pkt-flow not specified, "

          "sending pkt up the stack on default.");

    }

    NS_LOG_DEBUG("Phy_Recv UP. Pkt counter(" << incPktCounter++ << ") on node(" <<

         GetNetDevice()->GetAddress() << ")");

    p = PrevalidateIncomingPkt(p);

    if (p != NULL) {

      //put the packet into the incoming queue

      m_sC->AddNewPacket(p);

    }

  }

  return true;

}

/**

* pass packet p to channel

*/

bool

AquaSimPhyCmn::PktTransmit(Ptr<Packet> p, int channelId) {

  NS_LOG_FUNCTION(this << p);

  AquaSimPacketStamp pstamp;

  AquaSimHeader asHeader;

  p->RemoveHeader(pstamp);  //awkward but for universal encapsulation.

  p->PeekHeader(asHeader);

  if (GetNetDevice()->FailureStatus()) {

    NS_LOG_WARN("AquaSimPhyCmn nodeId=" << GetNetDevice()->GetNode()->GetId() << " fails!\n");

    p = 0;

    return false;

  }

  if (GetNetDevice()->GetTransmissionStatus() == SLEEP || (NULL != EM() && EM()->GetEnergy() <= 0))

  {

    NS_LOG_DEBUG("Unable to reach phy layer (sleep/disable)");

    p = 0;

    return false;

  }

  switch (GetNetDevice()->GetTransmissionStatus()){

  case SEND:

    UpdateTxEnergy(asHeader.GetTxTime());

    break;

  case NIDLE:

    /*

     * Something went wrong here...

     */

    NS_LOG_WARN("AquaSimPhyCmn node(" << GetNetDevice()->GetNode() << "," <<  GetNetDevice()->GetNode()->GetId()

        << "):mac forgot to change the status at time " << Simulator::Now());

    return false;

    break;

  case SLEEP:

    NS_LOG_WARN("AquaSimPhyCmn node(" << GetNetDevice()->GetNode()->GetId() << ") is sleeping! (dropping pkt)");

    return false;

    break;

  default:

    NS_LOG_WARN("AquaSimPhyCmn: wrong status (dropping pkt)");

    return false;

  }

  /*

  *  Stamp the packet with the interface arguments

  */

  StampTxInfo(p);

  Time txSendDelay = this->CalcAcousticsTxTime(asHeader.GetSize(), &m_modulationName );

  Simulator::Schedule(txSendDelay, &AquaSimNetDevice::SetTransmissionStatus, GetNetDevice(), NIDLE);

  //Simulator::Schedule(txSendDelay, &AquaSimPhyCmn::SetPhyStatus, this, PHY_IDLE);

  /**

  * here we simulate multi-channel (different frequencies),

  * not multiple tranceiver, so we pass the packet to channel_ directly

  * p' uw_txinfo_ carries channel frequency information

  *

  * NOTE channelId must be set by upper layer and AquaSimPhyCmn::Recv() should be edited accordingly.

  */

  NotifyTx(p);

  m_txLogger(p, m_sC->GetNoise());

  return m_channel.at(channelId)->Recv(p, this);

}

bool

AquaSimChannel::Recv(Ptr<Packet> p, Ptr<AquaSimPhy> phy)

{

  /*std::cout << "\nChannel: @Recv check:\n";

  p->Print(std::cout);

  std::cout << "\n";*/

  NS_LOG_FUNCTION(this << p << phy);

  NS_ASSERT(p != NULL || phy != NULL);

  return SendUp(p,phy);

}

bool

AquaSimChannel::SendUp (Ptr<Packet> p, Ptr<AquaSimPhy> tifp)

{

  NS_LOG_FUNCTION(this);

  NS_LOG_DEBUG("Packet:" << p << " Phy:" << tifp << " Channel:" << this);

  Ptr<AquaSimNetDevice> sender = Ptr<AquaSimNetDevice>(tifp->GetNetDevice());

  Ptr<AquaSimNetDevice> recver;

  //std::vector<Ptr<AquaSimPhy> > rifp;    //must support multiple recv phy in future

  Ptr<AquaSimPhy> rifp;

  //Ptr<Packet> pCopy;

  Time pDelay;

  /*

  if(!m_sorted){

    SortLists();

  }

  */

   NS_LOG_ERROR("channel Packet:" << p << " Phy:" << tifp << " Channel:" << this);

  std::vector<PktRecvUnit> * recvUnits = m_prop->ReceivedCopies(sender, p, m_deviceList);

  allPktCounter++;  //Debug... remove

  for (std::vector<PktRecvUnit>::size_type i = 0; i < recvUnits->size(); i++) {

    allRecvPktCounter++;  //Debug .. remove

    if (sender == (*recvUnits)[i].recver)

    {

      continue;

    }

    //TODO remove ... this is a local addition for flooding_test.

    if (FLOODING_TEST && (Distance(sender, (*recvUnits)[i].recver) > Distance((*recvUnits)[0].recver,(*recvUnits)[1].recver)*1.25/*arbitrary*/))

      {

        NS_LOG_DEBUG("Channel:SendUp: FloodTest(OutOfRange): sender(" << sender->GetAddress() << ") recver:(" <<  (*recvUnits)[i].recver->GetAddress() << ") dist(" << Distance(sender, (*recvUnits)[i].recver) << ")");

        continue;

      }

    sentPktCounter++; //Debug... remove

    recver = (*recvUnits)[i].recver;

    pDelay = GetPropDelay(sender, (*recvUnits)[i].recver);

    //pDelay = (*recvUnits)[i].pDelay;

    rifp = recver->GetPhy();

    //rifp = recver->ifhead().lh_first;

    AquaSimPacketStamp pstamp;

    AquaSimHeader asHeader;

    p->RemoveHeader(pstamp);

    p->RemoveHeader(asHeader);

    pstamp.SetPr((*recvUnits)[i].pR);

    pstamp.SetNoise(m_noiseGen->Noise((Simulator::Now() + pDelay), (GetMobilityModel(recver)->GetPosition())));

    asHeader.SetDirection(AquaSimHeader::UP);

    asHeader.SetTxTime(pDelay);

    p->AddHeader(asHeader);

    p->AddHeader(pstamp);

    /**

     * Send to each interface a copy, and we will filter the packet

     * in physical layer according to freq and modulation

     */

    NS_LOG_DEBUG ("Channel. NodeS:" << sender->GetAddress() << " NodeR:" << recver->GetAddress() << " S.Phy:" << sender->GetPhy() << " R.Phy:" << recver->GetPhy() << " packet:" << p

          << " TxTime:" << asHeader.GetTxTime() << pDelay<<"packet uid "<<p->GetUid()<<"packet size "<<p->GetSize());

    Simulator::Schedule(pDelay, &AquaSimPhy::Recv, rifp, p->Copy());

    /* TODO in future support multiple phy with below code.

     *

     * for (std::vector<Ptr<AquaSimPhy> >::iterator it = rifp.begin(); it!=rifp.end(); it++) {

     *     pCopy = p->Copy();

     *   Simulator::Schedule(pDelay, it, &pCopy);

     * }

     *

     */

  }

  p = 0; //smart pointer will unref automatically once out of scope

  delete recvUnits;

  return true;

}

if (asHeader.GetDirection() != AquaSimHeader::UP) {

      NS_LOG_WARN("Direction for pkt-flow not specified, "

          "sending pkt up the stack on default.");

    }

    NS_LOG_DEBUG("Phy_Recv UP. Pkt counter(" << incPktCounter++ << ") on node(" <<

         GetNetDevice()->GetAddress() << ")");

    p = PrevalidateIncomingPkt(p);

    if (p != NULL) {

      //put the packet into the incoming queue

      m_sC->AddNewPacket(p);

    }

void

AquaSimSignalCache::AddNewPacket(Ptr<Packet> p){

  /**

  * any packet error marked before this step means

  * this packet is invalid and will be considered

  * as noise to other packets only.

  */

  // TODO is packet collision even really tested or dealt with in this class???

  AquaSimHeader asHeader;

  p->PeekHeader(asHeader);

  Ptr<IncomingPacket> inPkt = CreateObject<IncomingPacket>(p,

          asHeader.GetErrorFlag() ? AquaSimPacketStamp::INVALID : AquaSimPacketStamp::RECEPTION);

  NS_LOG_DEBUG("AddNewPacket:" << p << " w/ Error flag:" << asHeader.GetErrorFlag() << " and incomingpkt:" << inPkt);

  m_pktSubTimer->AddNewSubmission(inPkt);

  inPkt->next = m_head->next;

  m_head->next = inPkt;

  m_pktNum++;

  m_totalPS += m_phy->EM()->GetRxPower();

  UpdatePacketStatus();

}

void

PktSubmissionTimer::AddNewSubmission(Ptr<IncomingPacket> inPkt) {

  AquaSimHeader asHeader;

  (inPkt->packet)->PeekHeader(asHeader);

  /*Time transmissionDelay = Seconds(inPkt->packet->GetSize() * 8 *      //Byte conversion/

                           m_sC->m_phy->GetMac()->GetEncodingEff() /

                           m_sC->m_phy->GetMac()->GetBitRate() ); */

  /* Need to calcuate modulation here, aka how long until entire packet is received */

  Time transmissionDelay ;

  if(asHeader.m_channelSelect==1){

    transmissionDelay = m_sC->m_phy->CalcAcousticsTxTime(asHeader.GetSize());

  }else{

    transmissionDelay = m_sC->m_phy->CalcOpticalTxTime(asHeader.GetSize());

  }

  NS_LOG_FUNCTION(this << "incomingPkt:" << inPkt << "txtime:" <<

                    asHeader.GetTxTime() << " transmissionDelay:" <<

                    transmissionDelay.ToDouble(Time::S));

  Simulator::Schedule(transmissionDelay,&PktSubmissionTimer::Expire, this, inPkt);

  /*if (m_waitingList.empty() || m_waitingList.top().endT > transmissionDelay)

  {

      Simulator::Schedule(transmissionDelay, &PktSubmissionTimer::Expire, this);

  }

  m_waitingList.push(PktSubmissionUnit(inPkt, transmissionDelay));

  */

}

void

PktSubmissionTimer::Expire(Ptr<IncomingPacket> inPkt)

{

  /*Ptr<IncomingPacket> inPkt = m_waitingList.top().inPkt;

  m_waitingList.pop();

  if(!m_waitingList.empty())

  {

    Simulator::Schedule(m_waitingList.top().endT, &PktSubmissionTimer::Expire, this);

  }

  */

  NS_LOG_DEBUG("Expire. time:" << Simulator::Now().ToDouble(Time::S) << " inPkt:" << inPkt);

  m_sC->SubmitPkt(inPkt);

}

void

AquaSimSignalCache::SubmitPkt(Ptr<IncomingPacket> inPkt) {

  NS_LOG_FUNCTION(this << inPkt << inPkt->status);

  status = inPkt->status;

  Ptr<Packet> p = inPkt->packet;

  DeleteIncomingPacket(p); //object pointed by inPkt is deleted here

  /**

  * modem has no idea about invalid packets, so release

  * them here

  */

  if (status == AquaSimPacketStamp::INVALID)

  {

    NS_LOG_DEBUG("Packet(" << p << ") dropped");

    p = 0;

  }

  else

    m_phy->SignalCacheCallback(p);

}

void

AquaSimPhyCmn::SignalCacheCallback(Ptr<Packet> p) {

  NS_LOG_FUNCTION(this << p);

  NS_LOG_DEBUG("PhyCmn::SignalCacheCallback: device(" << GetNetDevice()->GetAddress()

            << ") p_id:" << p->GetUid() << " at:" << Simulator::Now().GetSeconds()<<"\n");

  //TODO check for packet collision at signal cache before calling this

  AquaSimHeader asHeader;

  p->RemoveHeader(asHeader);

  asHeader.SetTxTime(Seconds(0.01));    //arbitrary processing time here

  p->AddHeader(asHeader);

  pktRecvCounter++; //debugging...

  SendPktUp(p);

}

/**

* send packet to upper layer, supposed to be MAC layer,

* but actually go to any specificed module.

*/

void

AquaSimPhyCmn::SendPktUp(Ptr<Packet> p)

{

  NS_LOG_FUNCTION(this);

  AquaSimHeader ash;

  MacHeader mach;

    p->RemoveHeader(ash);

  p->PeekHeader(mach);

  p->AddHeader(ash);

  NotifyRx(p);

  m_rxLogger(p, m_sC->GetNoise());

  //This can be shifted to within the switch to target specific packet types.

  if (GetNetDevice()->IsAttacker()){

    GetNetDevice()->GetAttackModel()->Recv(p);

    return;

  }

  switch (mach.GetDemuxPType()){

  case MacHeader::UWPTYPE_OTHER:

    if(m_device->MacEnabled())

      if (!GetMac()->RecvProcess(p))

        NS_LOG_DEBUG(this << "Mac Recv error");

    break;

  case MacHeader::UWPTYPE_LOC:

    GetNetDevice()->GetMacLoc()->Recv(p);

    break;

  case MacHeader::UWPTYPE_SYNC:

    GetNetDevice()->GetMacSync()->RecvSync(p);

    break;

  case MacHeader::UWPTYPE_SYNC_BEACON:

    GetNetDevice()->GetMacSync()->RecvSyncBeacon(p);

    break;

  case MacHeader::UWPTYPE_NDN:

    GetNetDevice()->GetNamedData()->Recv(p);

    break;

  default:

    NS_LOG_DEBUG("SendPKtUp: Something went wrong.");

  }

}

/*

this program is used to handle the received packet,

it should be virtual function, different class may have

different versions.

*/

bool

AquaSimBroadcastMac::RecvProcess (Ptr<Packet> pkt)

{

  NS_LOG_FUNCTION(this);

  /*std::cout << "\nBMac @RecvProcess check:\n";

  pkt->Print(std::cout);

  std::cout << "\n";*/

    AquaSimHeader ash;

  MacHeader mach;

  pkt->RemoveHeader(ash);

  pkt->RemoveHeader(mach);

    AquaSimAddress dst = mach.GetDA();

    //get a packet from modem, remove the sync hdr from txtime first

    //cmh->txtime() -= getSyncHdrLen();

    if (ash.GetErrorFlag())

    {

        NS_LOG_DEBUG("BroadcastMac:RecvProcess: received corrupt packet.");

        pkt=0;

        return false;

    }

    if (dst == AquaSimAddress::GetBroadcast() || dst == AquaSimAddress::ConvertFrom(m_device->GetAddress()))

    {

        if (m_packetSize == 0)

        {

            ash.SetSize(ash.GetSize() - m_packetHeaderSize);

        }

    pkt->AddHeader(ash);  //leave MacHeader off since sending to upper layers

        return SendUp(pkt);

    }

//    printf("underwaterAquaSimBroadcastMac: this is neither broadcast nor my packet, just drop it\n");

    pkt=0;

    return false;

}

bool

AquaSimMac::SendUp(Ptr<Packet> p)

{

  NS_ASSERT(m_device);

  AquaSimHeader ash;

  p->PeekHeader(ash);

  NS_LOG_DEBUG("Me(" << this->m_address.GetAsInt() << "): Received packet from Phy : " << ash.GetSize() << " bytes ; " << ash.GetTxTime().GetSeconds() << " sec. ; Dest: " << ash.GetDAddr().GetAsInt() << " ; Src: " << ash.GetSAddr().GetAsInt() << " ; Next H.: " << ash.GetNextHop().GetAsInt());

  if (Routing()) {

    m_routingRxTrace(p);

    return Routing()->Recv(p,ash.GetDAddr(),0);

  }

  if (ash.GetDAddr() == AquaSimAddress::ConvertFrom(m_device->GetAddress())) {

    //I am sink, no pass up implemented.

    NS_LOG_INFO("Mac:SendUp : packet at destination node:" << m_device->GetAddress() <<

      ", with end-to-end delay of " << (Simulator::Now()-ash.GetTimeStamp()).ToDouble(Time::S));

    m_routingRxTrace(p);

    return true;

  }

   m_routingRxTrace(p);

  /* if no routing layer is currently implemented */

  if(m_dummyRouting)

  {

      //Change to DOWN and send packet (mac layer wise).

      p->RemoveHeader(ash);

      ash.SetDirection(AquaSimHeader::DOWN);

      p->AddHeader(ash);

      if (!TxProcess(p)) {

        NS_LOG_DEBUG(this << "Mac recv error");

      }

  }

  return false;

}

/**

  * send packet p to the upper layer, i.e., port dmux

  *

  * @param p   a packet

  * */

bool

AquaSimRouting::SendUp(Ptr<Packet> p)

{

  //port_dmux->recv(p); // (Handler*)NULL

  AquaSimHeader ash;

  p->PeekHeader(ash);

  //std::cout << "\nRouting::SinkRecv:" << m_device->GetAddress() <<",pkt#" << p->GetUid() << ",ts:" << ash.GetTimeStamp().ToDouble(Time::S) << " @" << Simulator::Now().ToDouble(Time::S);

  //std::cout << (Simulator::Now()-ash.GetTimeStamp()).ToDouble(Time::S) << "\n";

  NS_LOG_FUNCTION(this << p << " : currently a dummy sendup on nodeAddr:" <<

      AquaSimAddress::ConvertFrom(m_device->GetAddress()).GetAsInt());

  m_sendUpPktCount++;

  NS_LOG_INFO("Me(" << AquaSimAddress::ConvertFrom(m_device->GetAddress()).GetAsInt() << "): SendUp: "

              << ash.GetSize() << " bytes ; "

              << ash.GetTxTime().GetSeconds() << " sec. ; Dest: "

              << ash.GetDAddr().GetAsInt()

              << " ; Src: " << ash.GetSAddr().GetAsInt()

              << " ; Forwards: " << ash.GetNumForwards() << " ; Packet counter="

              << m_sendUpPktCount);

  /*TODO this needs to be fully implemented with the multiplexer

          Or at least sent up for further processing

          ie. Sync, Localization, Application driven

    NOTE: AquaSimPhyCmn::SendPktUp()

  */

  m_routingRxCbTrace(p);

  return true;

}
